SVG-L

STATIC VAR GENERATOR SVG-L

The SVG-L is the optimal solution to compensate the consumption of inductive reactive energy as a capacitive in installations. The static reactive power generator adjusts the demand in a matter of milliseconds to compensate instantly in both balanced and unbalanced systems and with or without a neutral.

It is specially designed to be used in networks with fast load variations, where it is essential to compensate reactive consumption at the moment, to guarantee an objective cos ϕ and thus avoid any penalty in the electricity bill.

Thanks to its technology, it is prepared to improve the efficiency and available power of the transformer. It also reduces the current circulation in all the conductors of the installation, thus producing less wear on the components.

Connects up to 100 devices in parallel.
More than 97% efficiency.
There are no transients.
Response time less than 20ms.
Quick and easy installation.
Datalogger with alarm records and storage (2Gb).
Safe start-up thanks to the self-diagnostic system.

APPLICATIONS

The SVG-L has many different applications. It can be installed in different types of industry, service sectors, infrastructures, etc.

Some examples: Iron and steel industries, metallurgy, paper mills, telecommunication infrastructures, data centers, industrial hotels, airports…

Technical Characteristics
Downloads

Technical Characteristics

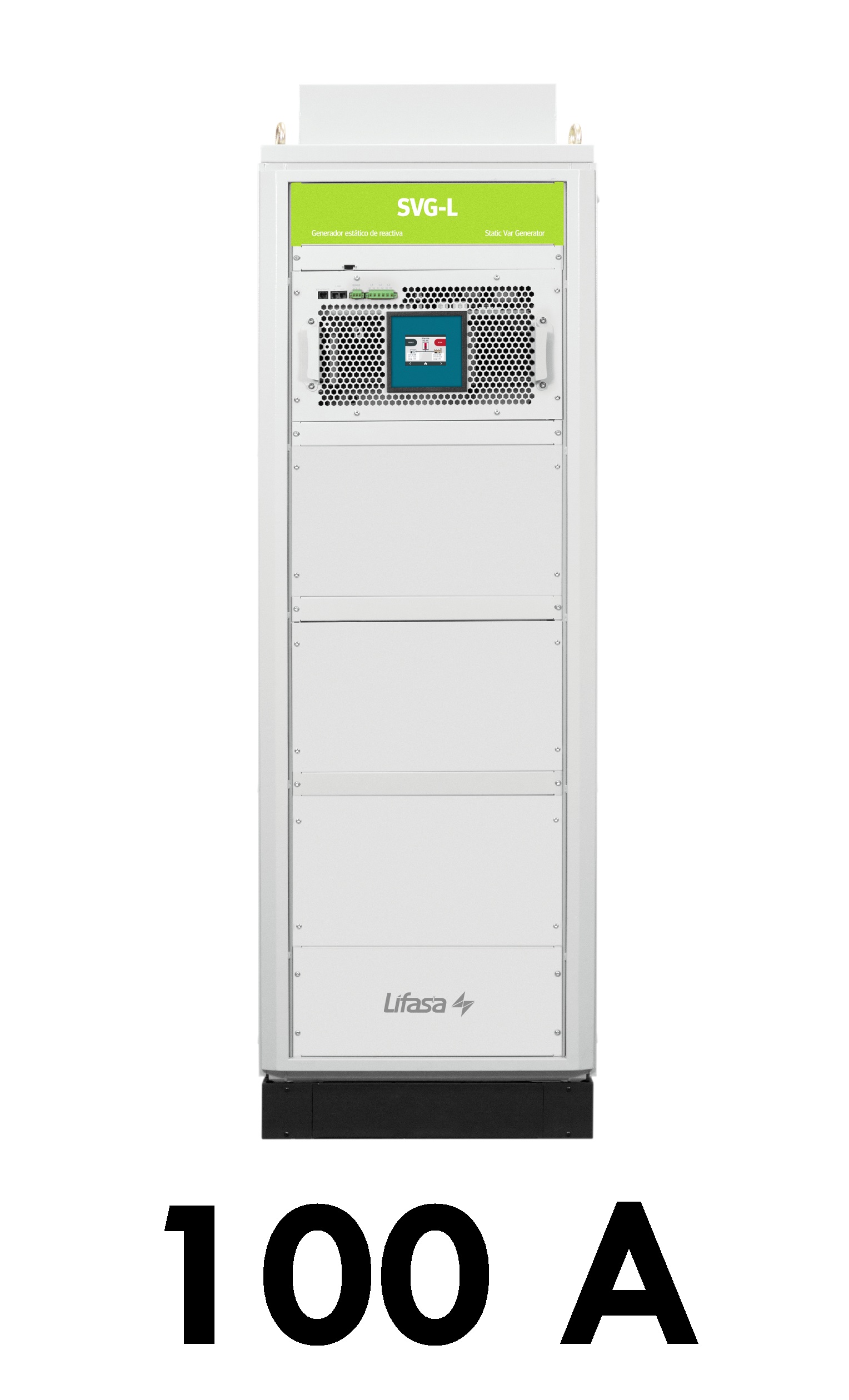

Models	Phase current: Wall type: 30 A (RMS) / 60 A (RMS) / 100 A (RMS) Cabinet type: 100 A (RMS) / 200 A (RMS) / 300 A (RMS) / 400 A (RMS) Power 4 W (400 V): Wall type: 20700 VA / 41400 VA / 69000 VA Cabinet type: 69000 VA / 138000 VA / 207000 VA / 276000 VA Power 3 W (480 V): Wall type: 30000 VA / 60000 VA / 100000 VA Cabinet type: 100000 VA / 200000 VA / 300000 VA / 400000 VA Weight: Wall type : 21 kg / 39 kg / 56 kg Cabinet type: 190 kg / 245 kg / 300 kg / 355 kg
Electrical features	Rated voltage (Ph-Ph): 230…480± 10 % (3 Wires) / 230…400 V± 10 % (4 Wires) Frequency: 50 Hz / 60 Hz ± 5% Maximum THD V: 25% Noise level: Wall type: 58 dBA / 60 dBA / 60 dBA Cabinet type: 60 dBA / 63 dBA / 66 dBA / 69 dBA Number of phases: 3 phases without neutral wire (3 Wires) / 3 with neutral wire (4 Wires) Current harmonics compensation: 2nd to 50th harmonic selectable Specified harmonic selection: 3rd to 25th harmonic Current measurement: …/5A, Class 1 or (0,5…0,2) freq. up to 2500 Hz (1.5 VA)
Filter characteristics	Controller: Digital, DSP Protection degree: IP20 Current limitation: protection from over current by current limitation. Graphic display panel: Color TCT Touch screen 3,5″ . Web Server and Data logger (2Gb)
Standards	Safety standard: IEC 55011:2011; EN 62477-1:2012; IEC 61439-1:2011 Electromagnetic Compatibility: EN61000-6-4:2007, EN61000-6-2:2006
Comunication	Interphase: RS-485 Protocol: MODBUS RTU Baud rate: 9600 Type of parity: None, odd, even Ethernet: TCP/IP, Modbus TCP
Environmental conditions	Operating temperature: -10ºC…+ 45 ºC Storage temperature: -20 ºC…+ 55 ºC Overvoltage category: OVC III 300V Relative humidity: 0%…90% without condensation Operating Altitude: < 3000 meters (2000 meters without capacity reduction)
