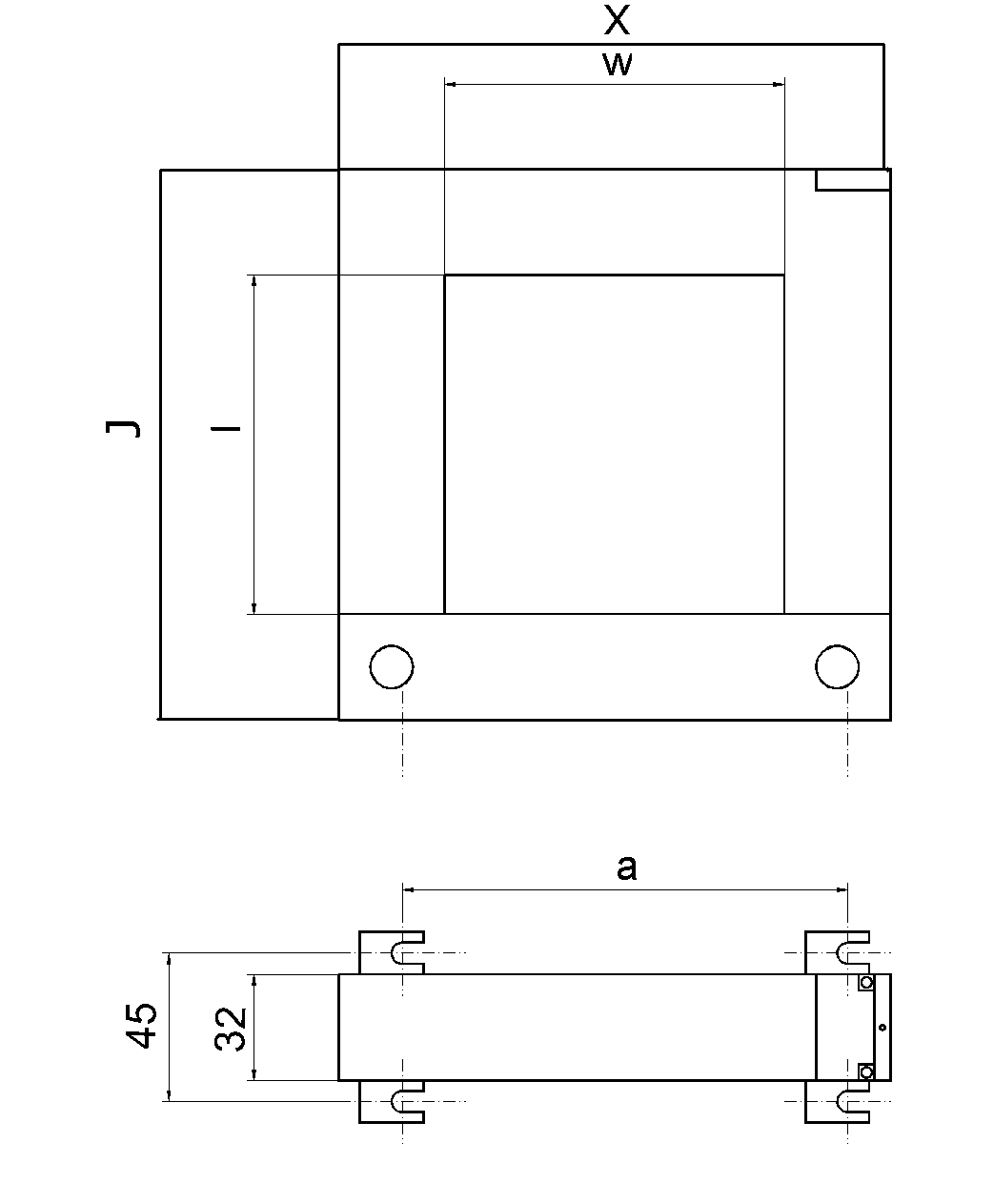

Current transformer with split-core TCP

TCP series is designed to suit working installations. Its splittable core allows fitting without interrupting the supply of electrical power.

Max. network voltage0.6 kV
Frequency 50Hz
Insulation level0.6/3 kV
Max. transient current.20In
Working temperature-10 / +55ºC
Casing Self-extinguishing V0
Standards IEC 60185, VDE 414, UNE-EN 60044-1

Other powers, voltages and frequencies on request.

FileLanguageDateSize
Datasheet19/11/20180.2 MB
